Our Resources
Mining Equipment
Advanced Technology Equipment

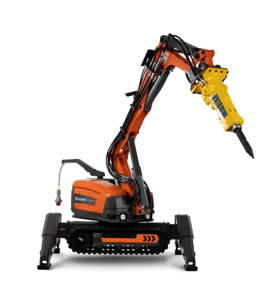

Robotic Electrical Excavator
The Husqvarna DXR 305 is a powerful, remote-controlled demolition robot known for its high power-to-weight ratio and versatility. It features a 27 kW rated input power, a 5.2m reach, and weighs 1960 kg. The robot is designed for both construction and process industries, offering a wide application window due to its narrow width (78 cm) and superior stability.- Capacity: DXR 305
- Year of Manufacture: 2024
DTH Crawler Drills

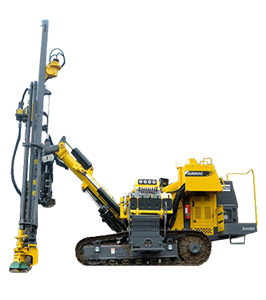

Atlas Copco
The Atlas Copco ICM 260 is a hydraulic crawler drill designed for DTH drilling in mining and quarrying, with a hole diameter range of 95-115 mm. It’s known for its compact size, flexibility, and features that enhance productivity, such as a powerful engine, high torque rotation unit, and efficient screw compressor.- Model: ICM-260
| Specification | Quantity |
|---|---|
|
Hole Diameter: 105–115 mm |
3 Units |
Crushing & Screening Equipment

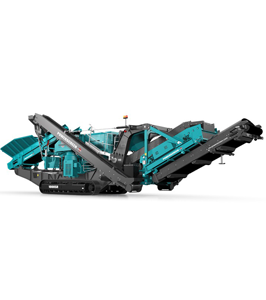

Terex Power Screen
Terex Powerscreen machinery offers a range of screening and crushing equipment with varying specifications. For example, the Powerscreen 700 is designed for efficient material separation with a 7 x 4 foot (2.1 x 1.2 meter) screening deck and a throughput of up to 300 tonnes per hour- Capacity: 250 TPH
| Year of Manufacture |
|---|
|
2018 |

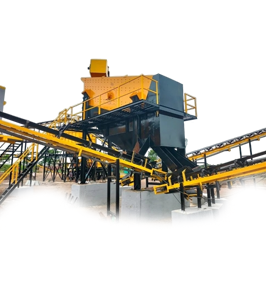

Crusher Plant
A 250 TPH (tons per hour) crusher plant typically involves a multi-stage crushing process with specific equipment and parameters. The plant’s capacity is 250 tons per hour, with a feed size typically around 600mm and down, and the output product size can be adjusted, often targeting 150mm and down.- Capacity: 250 TPH
| Year of Manufacture |
|---|
|
2017 |
Hydraulic Rock Breakers

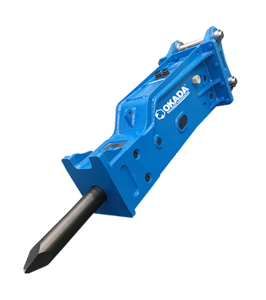

Okada Hydraulic Breaker
The Okada 3700HD Hydraulic Breaker, also known as the Okada 3700, has a power rating of 1000 W. Its operating pressure is 19 MPa, and it operates at a frequency of 650 Hz. The breaker weighs 2500 kg and has an overall length of 3016 mm. The tool diameter is 150 mm, and the accumulator gas pressure is 5.9 Mpa. The carrier output flow range is 275 LPM.- Model: OKADA 3700HD
| Year | No. of Units |
|---|---|
|
2018 |
2 |
|
2017 |
3 |

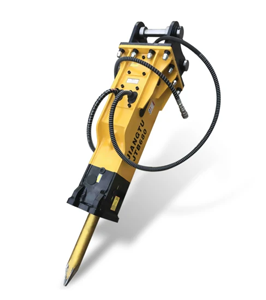

Rock Breaker
The EDT 3200 Rock Breaker, also known as the EDT3200 or DOZCO 3200, is a hydraulic rock breaker designed for industrial applications, particularly on excavators. It features a 155mm tool diameter and a total weight of 2716 kg (including the chisel). The breaker is suitable for 28-35 ton excavators and requires an optimal oil flow rate of 180-240 l/min- Model: EDT-3200
| Year | No. of Units |
|---|---|
|
2015 |
3 |
|
2013 |
1 |
|
2012 |
4 |
|
2011 |
1 |
|
2010 |
2 |

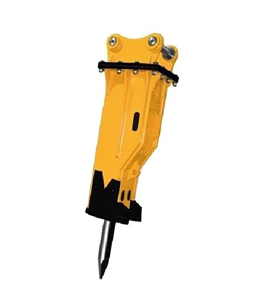

Rock Breaker
The EDT 2200 Hydraulic Rock Breaker is designed for breaking rock and is compatible with 18-26 ton excavators. It has an operating pressure of 160-180 kg/cm², a chisel diameter of 140mm, and an impact frequency of 350-500 bpm. The breaker’s weight, including the chisel, is approximately 1767 kg, and it requires an oil flow rate of 120-180 l/min.- Model: EDT-2200
| Year | No. of Units |
|---|---|
|
2012 |
2 |

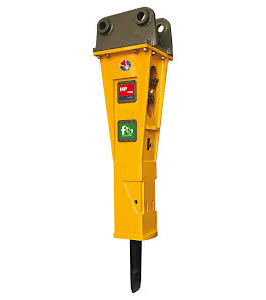

Rock Breaker
The Indeco HP4000 hydraulic rock breaker is designed for excavators weighing 26-33 tons. It operates at a pressure of 130-160 bars and requires an oil delivery of 180-230 l/min. The breaker itself weighs 2500 kg and has a tool diameter of 150mm. The back pressure is 8 bars.- Model: INDECO HP-4000
| Year | No. of Units |
|---|---|
|
2012 |
1 |
